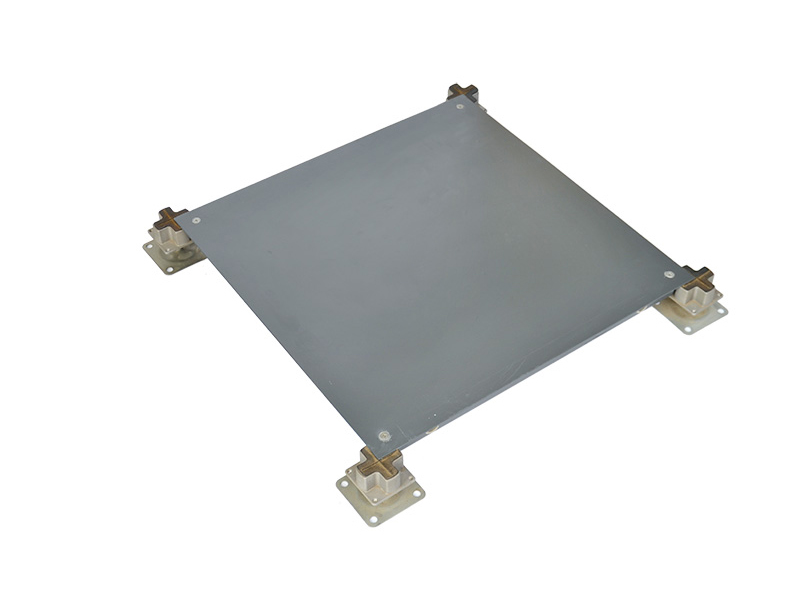

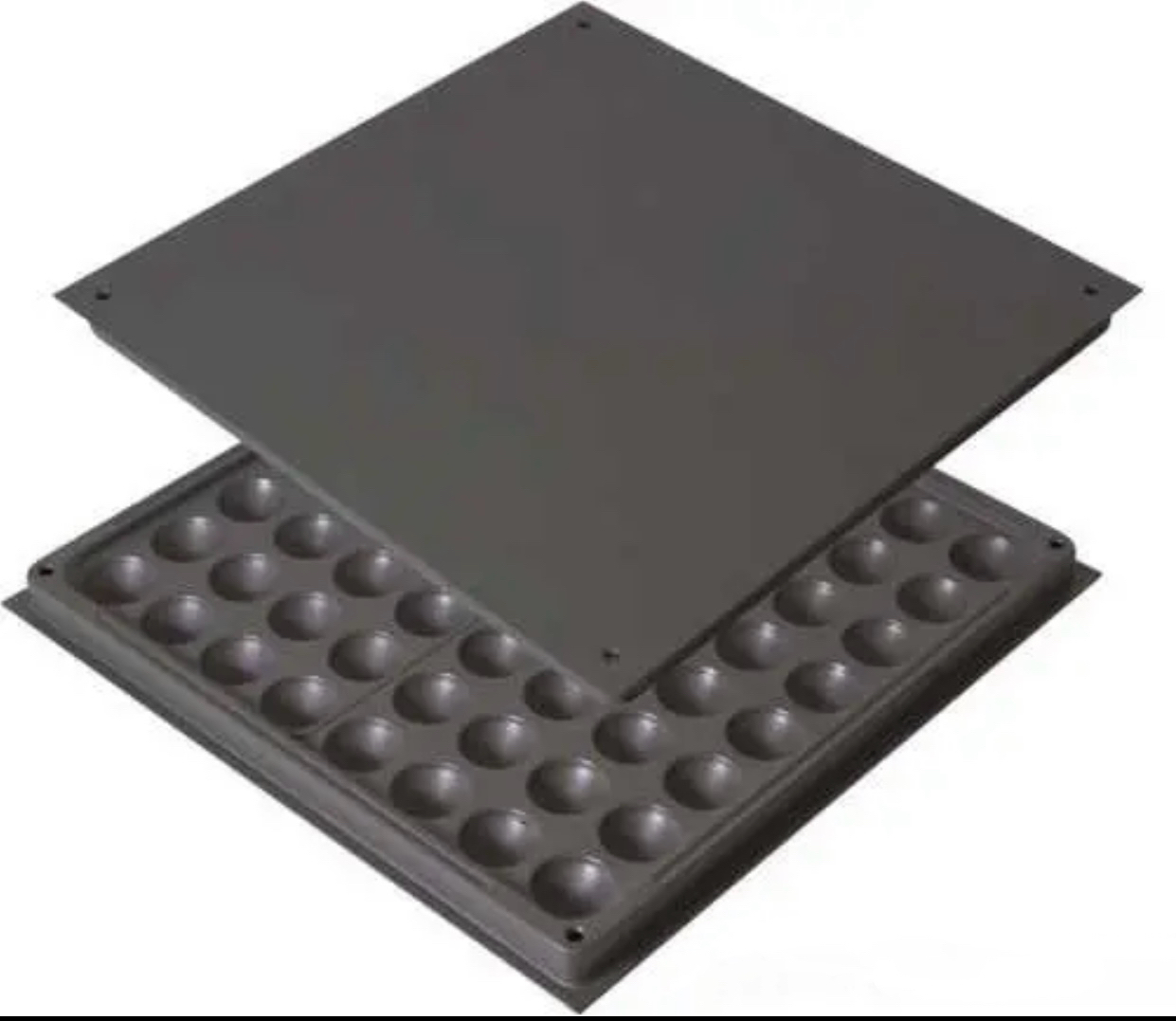

This Steel Cement metal Raised Access Floor panels are perfect flooring solution for general offices, learning institutions, casinos, libraries, banks, showrooms, etc. The Bare Steel ConCore Raised Metal Flooring Panel is made of quality steel plate, which is stretched forming welded and sprayed with bubble cement filled in its inner cavity.

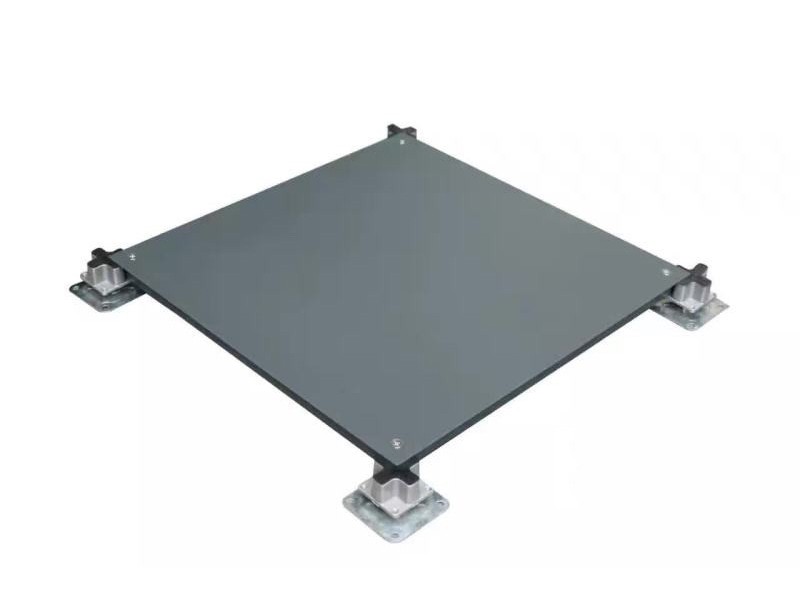

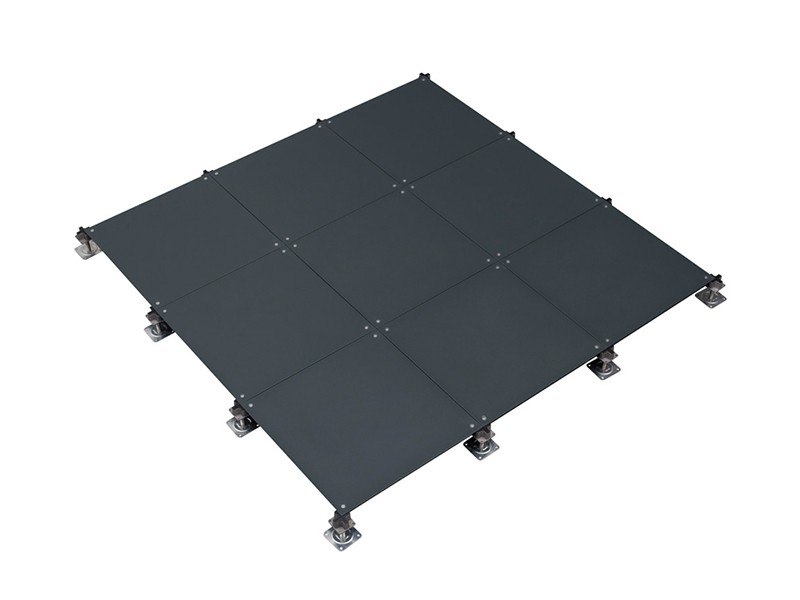

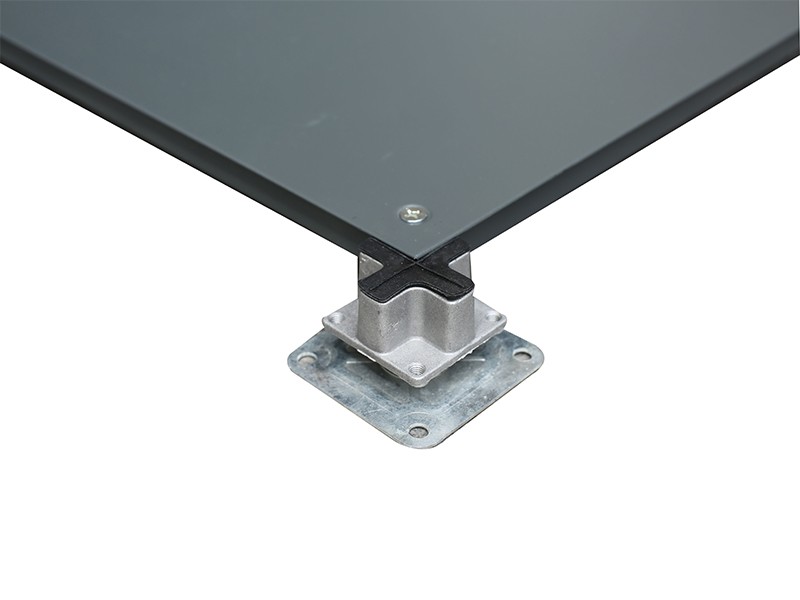

This OA Bare Raised Floor Panels are perfect flooring solution for general offices, learning institutions, casinos, libraries, banks, showrooms, etc. The Bare Steel ConCore Raised Metal Flooring Panel is made of quality steel plate, which is stretched forming welded and sprayed with bubble cement filled in its inner cavity. Its pedestal is plated with zinc and cast aluminum alloy, whose height is adjustable and can be self-locked. The OA600 Steel Cement Raised Access Floor can be shaped by either slicing or riveting.
Steel Cement metal Raised Access Floor panels:Office building, intelligent office environment, meeting room, commercial and industrial bureau, government, places that have requirements of dust-proof and water-proof, fields with wiring requirements, usually used with square carpet.
● Designed specially for office building
● Excellent load performance
● Epoxy paint for life time protection
● Class A flame spread & smoke developed index
● 500mm panel mainly for Japan, Korea and China Taiwan
● 24" / 610mm panel mainly for North America
Type | Size | Concertrated Load Defleation≤2.5mm | Uniform Load | Ultimate Load | System Resistance | ||
mm | LBS | KN | KG | KN/m2 | KN | Ω | |
FS662 | 600*600 (500*500/610*610 is optional) | 662 | 2.95 | 300 | 12.50 | 8.85 | 1.0x106-1.0x109 |
FS800 | 800 | 3.56 | 363 | 16.10 | 10.68 | ||
FS1000 | 1000 | 4.45 | 454 | 23.00 | 13.35 | ||
FS1250 | 1250 | 5.56 | 567 | 33.00 | 16.68 | ||
FS1500 | 1500 | 6.67 | 680 | 34.50 | 20.02 | ||
FS2000 | 2000 | 8.90 | 906 | 46.00 | 26.70 | ||
As a professional manufacture of Access raised flooring,we have 28 years experience in this field and also have a good reputation.
