Key Features & Benefits
· Superior Static Control: With a system resistance of 1.0 × 10⁶ – 1.0 × 10⁹ Ω, our floors safely dissipate electrostatic charges, protecting critical components from ESD damage.
· Exceptional Load Performance: Constructed with a high-density cementitious core encased in steel (Models FS662-FS1500), our panels are engineered to support heavy equipment and high traffic, ensuring long-term durability.
· Certified Fire Safety: Your safety is paramount. Our system achieves a Class A fire resistance rating, providing maximum protection for your assets and personnel.
· Unmatched Versatility: Choose from a wide array of durable and aesthetic finishes, including High-Pressure Laminate (HPL), vinyl, and rubber, to meet the specific needs of your environment.

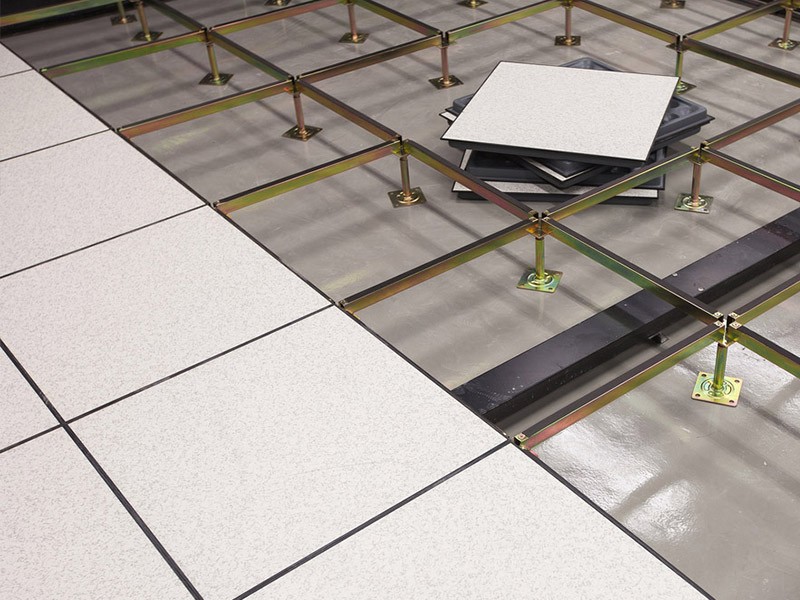

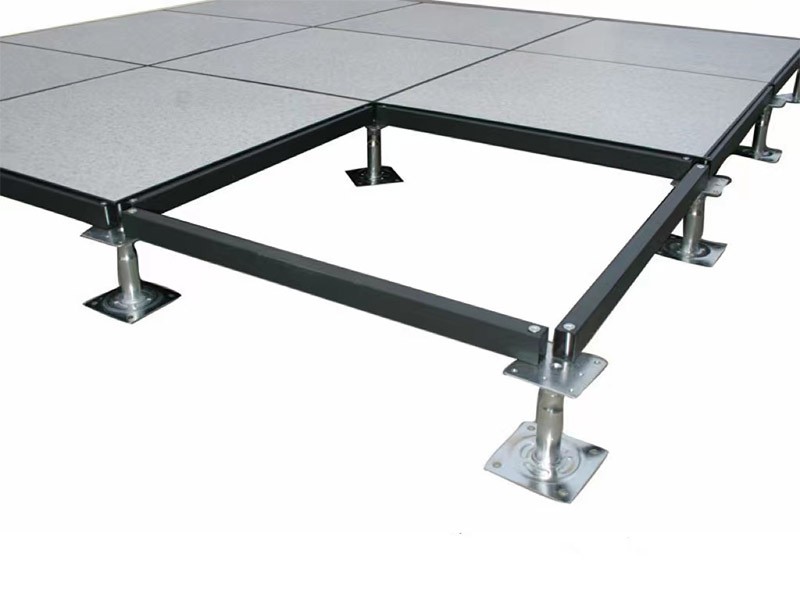

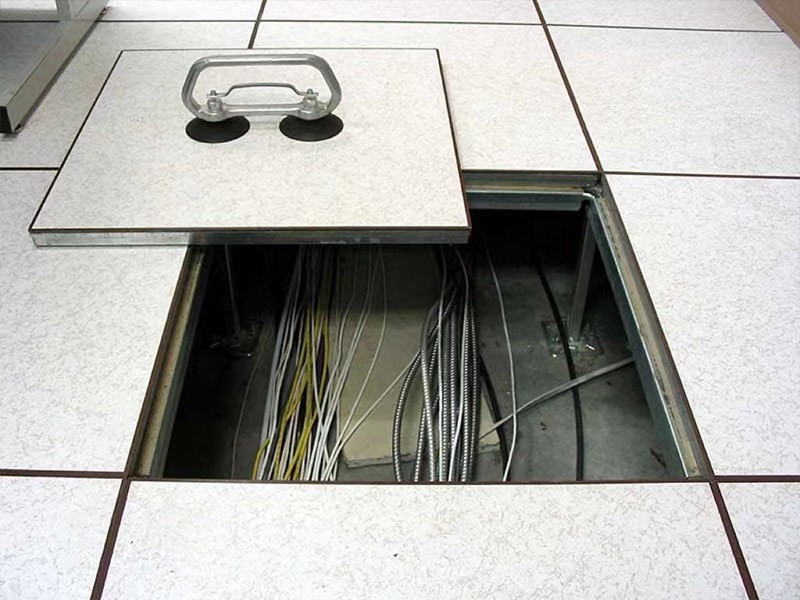

· Fully Customizable Height: Our adjustable pedestal system allows for precise, custom underfloor heights, creating ample space for cabling, cooling, and other essential services.
· Rapid Deployment & Support: We pride ourselves on fast delivery times and comprehensive after-sales support, ensuring your project stays on schedule and operates smoothly.
Type : | FS662- 1500 |
Finished Floor Height : | 100- 1000mm |
Panel Size : | 600*600* 33mm、610*610mm(24"*24") |
Edge trim type : | ormal trim、Trimless、 ”F”edge trim、Printed trim |
Finish Covering : | 1.0-2.0mm Anti-static Laminate HPL、 2.0-3.0mm PVC、10m Cermic、Marble、Granite、Nature Wood and etc.m |
|Installation : | With Stringer System |

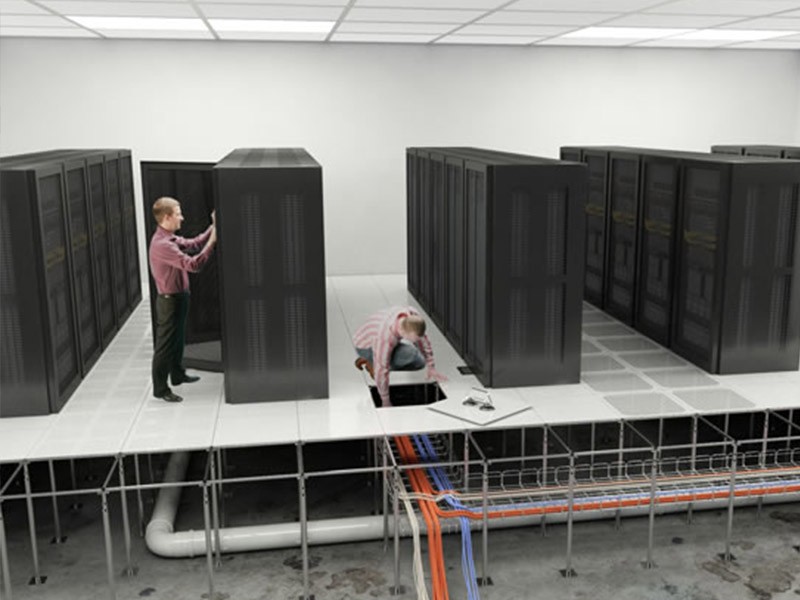

Anti Static Conductive Raised Access False Flooring Application
Our anti-static raised access flooring is the perfect solution for environments that demand stringent static control and robust infrastructure, including:
· Data Centers & Server Rooms
· Telecommunication Hubs
· Cleanrooms (e.g., electronics manufacturing, pharmaceuticals)
· General Office Spaces with intensive cabling
· Command and Control Centers
● Excellent anti-static performance
● Flame retardant, anti-skid, anti-rust, anti-soil
● Mighty glue, strong wear-ability, non-bubble
● Class A flame spread and smoke development rating
● 24” / 610mm size panels are available
Why Choose ZILI for Your Raised Floor Needs?
At ZILI, we understand that your facility's foundation is critical. We combine high-quality materials, precision manufacturing, and a customer-centric approach to deliver flooring solutions that perform. Our commitment to cost-effectiveness, diverse finish options, fast delivery, and dedicated after-sales support makes us the ideal choice for your next project.
Type | Size | Concertrated Load Defleation≤2.5mm | Uniform Load | Ultimate Load | System Resistance |
mm | LBS | KN | KG | KN/m2 | KN | Ω |
FS662 | 600*600 (610*610 is optional) | 662 | 2.95 | 300 | 12.50 | 8.85 |
1.0 × 10⁶ – 1.0 × 10⁹ |
FS800 | 800 | 3.56 | 363 | 16.10 | 10.68 |
FS1000 | 1000 | 4.45 | 454 | 23.00 | 13.35 |
FS1250 | 1250 | 5.56 | 567 | 33.00 | 16.68 |
FS1500 | 1500 | 6.67 | 680 | 34.50 | 20.02 |
FS2000 | 2000 | 8.90 | 906 | 46.00 | 26.70 |
Q1: What does the "static-dissipative" range (1.0 × 10⁶ – 1.0 × 10⁹ Ω) actually mean?
A1: This specific electrical resistance range is the industry standard for safety and performance. It is low enough to slowly and safely "dissipate" (or drain) static electricity from personnel and equipment, preventing a harmful ESD spark. At the same time, it is high enough to not be "conductive," which protects personnel from the risk of serious electrical shock.
Q2: What kind of finishes can I choose for this anti-static floor?
A2: We offer a wide variety of factory-applied finishes to meet your needs. The most popular choices for anti-static environments are High-Pressure Laminate (HPL) and Conductive Vinyl (PVC). We can also provide other finishes, such as rubber, or bare-finish panels if you wish to apply your own carpet tiles.
Q3: What is the core material of these panels?

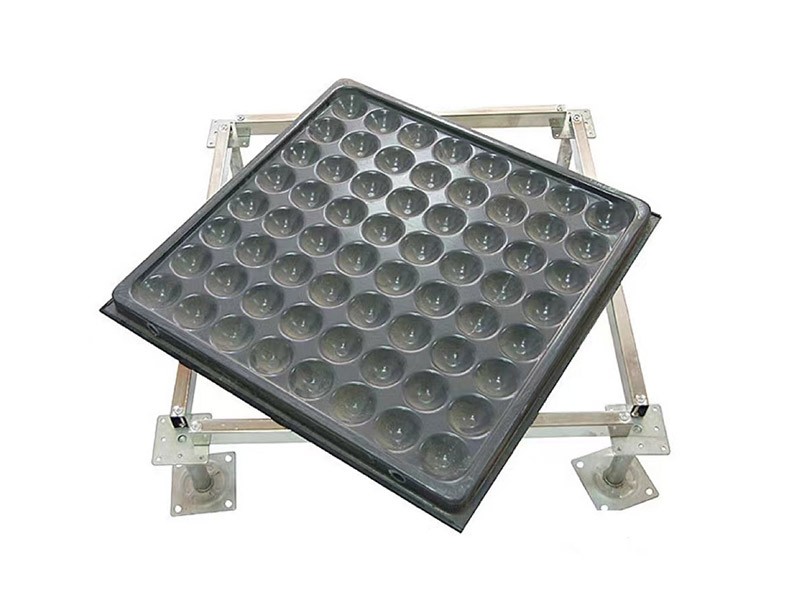

A3: The core is made of a high-density, cement-like slurry (cementitious fill) that is completely encased in a steel shell. This "steel cementitious" construction is what gives the panel its exceptional load capacity, solid feel underfoot, and Class A fire rating.
Q4: Can this floor (FS662-FS1500) support heavy server racks?
A4: Absolutely. The FS662-FS1500 model range is specifically engineered for high-load environments like data centers. These panels are designed to handle significant static loads (like heavy racks) and rolling loads (like equipment carts). We can provide detailed technical data sheets for each model's specific load ratings.
Q5: Can I customize the height of the underfloor space?
A5: Yes. The finished floor height is determined by our adjustable pedestal system. We can provide pedestals to create almost any height you require, from just a few inches for cable management to several feet for underfloor air distribution (plenum).
