Anti-static Raised Floor
 10/01/2023

ZiLi All Steel Anti-Static HPL Raised Floor - HPL All Steel Anti-Static Access Floor

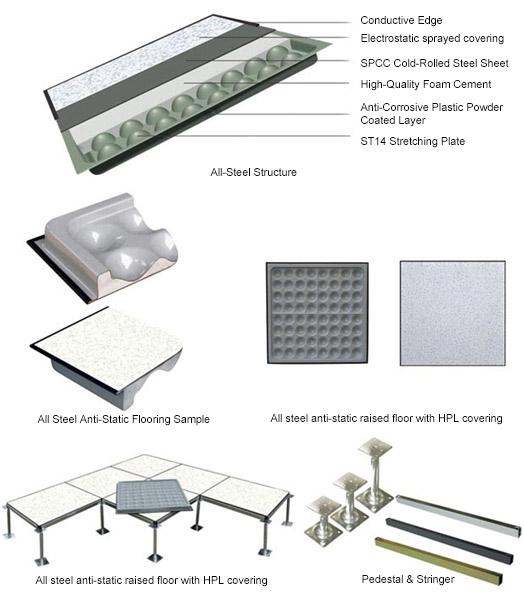

ZiLi HPL all-steel anti-static raised floor structure adopts SPCC hard steel on the upper layer, ST14 tensile plate on the bottom, with high-quality cement-filled inside, anti-cracking High Pressure Laminate(HPL) coated on the surface, and conductive strip plated on all edges. Our HPL all-steel anti-static floor pedestal is equipped with a high-quality steel plate-pressed bracket, height-adjustable threaded rod, and stringer made of square tubes. We keep excellent quality, thoughtful after-sales service, and competitive prices to ensure our customers' benefit!

Anti-static Raised Floor


Anti-static raised floors are specifically designed to address the unique challenges faced by office spaces, data centers, and other mission-critical facilities. These innovative flooring systems offer a unique combination of features that make them the ideal choice for contemporary workspaces.



Electrostatic Discharge (ESD) Control: The anti-static properties of these raised floors effectively dissipate static electricity, preventing the buildup of charges that can interfere with sensitive electronic equipment and pose a safety risk to personnel.



pvc finish aluminum anti-static raised floor is aluminum construction of the raised floor panels, coupled with a durable PVC finish, ensures exceptional resistance to heavy foot traffic, rolling loads, and the impact of various cleaning agents. This durability translates to a long service life, minimizing the need for frequent replacements and reducing the overall maintenance burden.

pvc finish aluminum anti-static raised floor is PVC finish creates a smooth, seamless, and non-porous surface that is effortless to clean and maintain. This characteristic is essential in office environments, where the containment of dust, dirt, and other contaminants is of paramount importance.


Type :

FS662- 1500

Finished Floor Height :

100- 1000mm

Panel Size :

600*600* 33mm、610*610mm(24"*24")

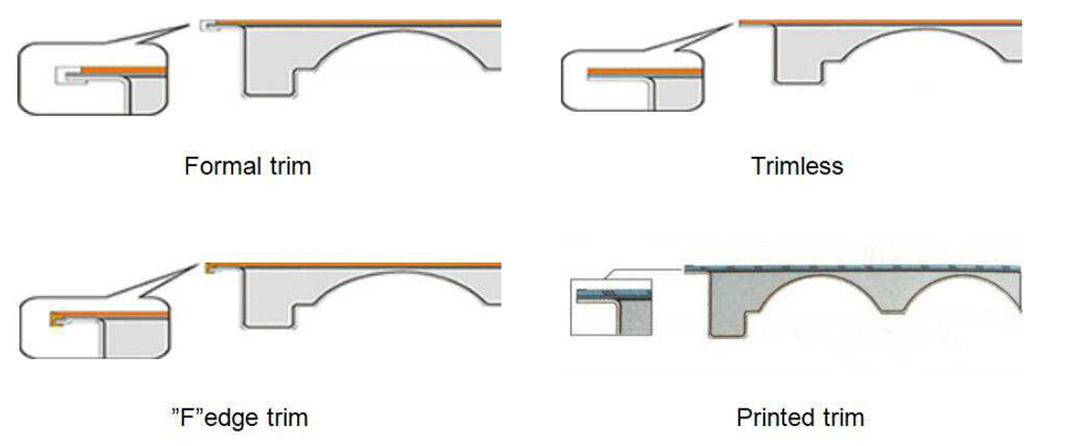

Edge trim type :

ormal trim、Trimless、 ”F”edge trim、Printed trim

Finish Covering :

1.0-2.0mm Anti-static Laminate HPL、 2.0-3.0mm PVC、10m

Cermic、Marble、Granite、Nature Wood and etc.m

|Installation :

With Stringer System

Anti-static Raised Floor trimless


Application


Data center, computer room, control room, laboratory, post telegraph, power control center, workshop and places where require anti-static environment or have many wires.


Characteristics


● Excellent anti-static performance

● Flame retardant, anti-skid, anti-rust, anti-soil

● Mighty glue, strong wear-ability, non-bubble

● Class A flame spread and smoke development rating

● 24” / 610mm size panels are available


Supports


It is equipped with supports on four comers,of which height can be adjusted.


Load Capacity



Type

Size

Concertrated Loa

Defleation≤2.5mm

Uniform Load

Ultimate Load

System Resistance

mm

LBS

KN

KG

KN/m2

KN

Ω

FS662

600*600

(610*610 is optional)

662

2.95

300

12.50

8.85

1.0x106-1.0x109

FS800

800

3.56

363

16.10

10.68

FS1000

1000

4.45

454

23.00

13.35

FS1250

1250

5.56

567

33.00

16.68

FS1500

1500

6.67

680

34.50

20.02

FS2000

2000

8.90

906

46.00

26.70
