Anti static Calcium Sulphate Floor
Anti-static calcium sulphate raised access floor consists of high-strength calcium sulphate core. steel sheet is bonded to the bottom of core. HPL, PVC or anti-static ceramic tiles is bonded to the top of core. PVC edging strip is glued to each edge of the panel, avoiding common occurrences of floor bubbling, and unglued phenomena and etc.
Finished Floor Height : | 100- 2000mm |
Density : | 1500-1700 kg/m3 |
Panel Size : | 500* 500mm、600* 600mm and special size |
Core Panel Thickness : | 22 -38mm |
Upper Covering : | Bare、1.0-2.0mm Anti-static Laminate HPL、2.0-3.0mm PVC、10mm Cermic、Marble、 Granite、 Nature Wood、and etc. |
Under Covering : | Bare、 0.3-2.0mm Galvanized steel、 0.1-2.0mm Aluminum Foil |

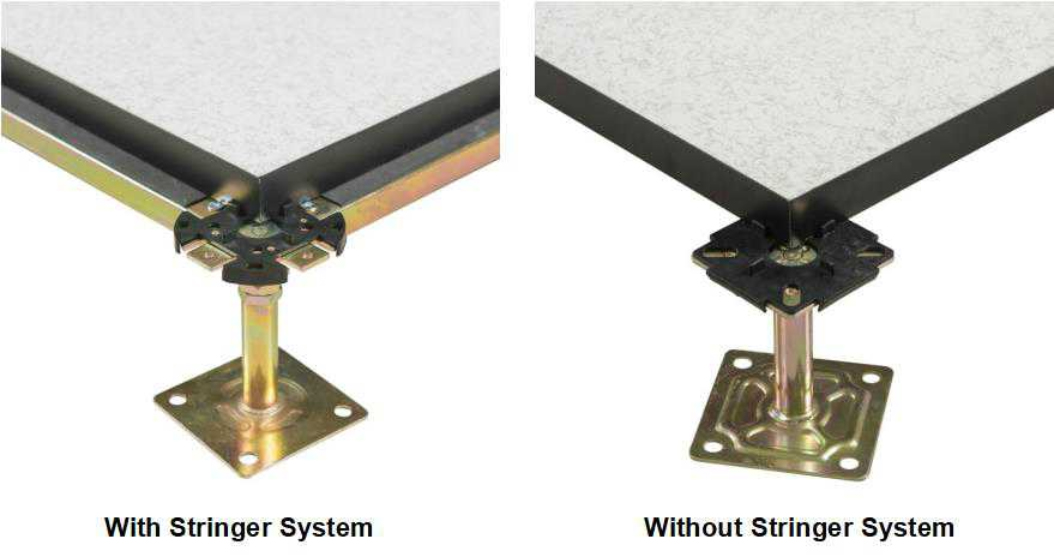

Installation : | Without or With Stringer System |
● Good loading capacity and conductivity
● Good sealing and water-proof
● Fire-proof, antisepsis and sound insulation
● Exceptionally high rolling load capacity
● Improved acoustic properties
Anti-static calcium sulphate raised access floor is widely used in telecommunication room. Power station, computer room, factory clean room and other anti-static requiring places.

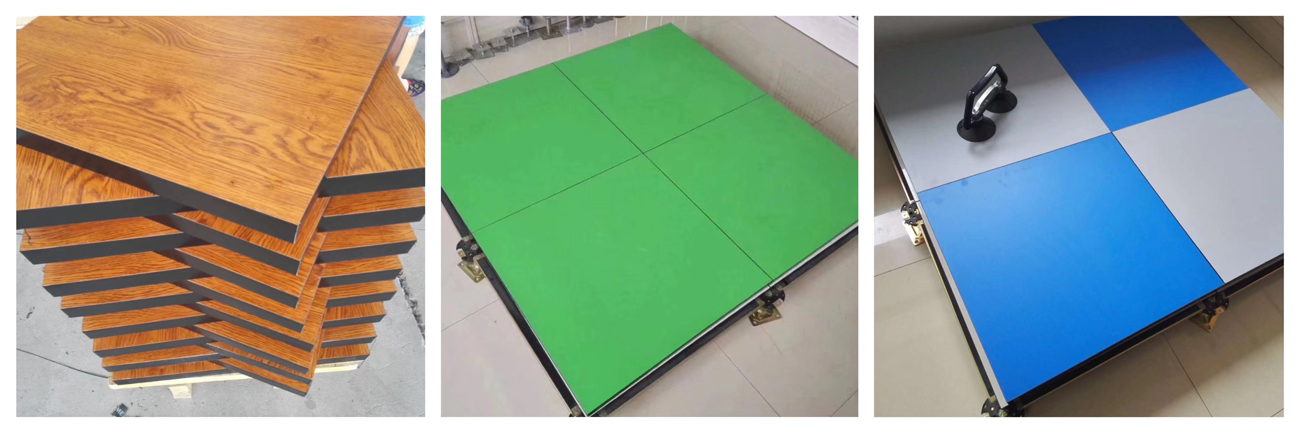

Customized Covering
Type | Size | Rolling load | Uniform load | Ultimate load | Concentrated load | ||||||
10PASS | 10KPAAASS | 2.5mm deflection | 2.0mm deflection | ||||||||
FS1000 | 600*600mm 30-40mm thick | 3.56KN | 2.67KN | 5000LB/m2 | 22.22KNm2 | 3260LB | 14.50KN | 1000LB | 4.45KN | 800LB | 3.56KN |
FS1250 | 4.45KN | 3.56KN | 6250LB/m2 | 27.78KNm2 | 4130LB | 18.36KN | 1250LB | 5.56KN | 1000LB | 4.45KN | |
FS1500 | 5.56KN | 4.45KN | 7500LB/m2 | 33.34KNm2 | 5000LB | 22.17KN | 1500LB | 6.68KN | 1250LB | 5.56KN | |
FS2000 | 6.68KN | 5.56KN | 10000LB/m2 | 44.45KNm2 | 6620LB | 29.42KN | 2000LB | 8.89KN | 1500LB | 6.68KN | |
FS2500 | 8.89KN | 6.68KN | 13000LB/m2 | 57.79KNm2 | 8400LB | 37.34KN | 2500LB | 11.11KN | 2000LB | 8.89KN |
