Anti-static Raised Floor

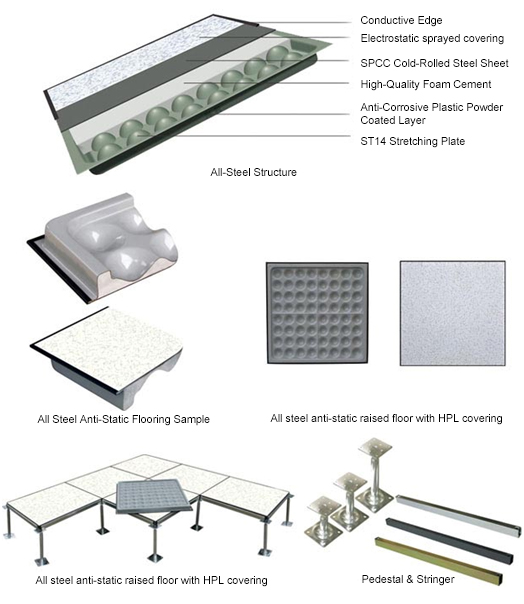

16/01/2023ZiLi HPL all-steel anti-static raised floor structure adopts SPCC hard steel on the upper layer, ST14 tensile plate on the bottom, with high-quality cement-filled inside, anti-cracking High Pressure Laminate (HPL) coated on the surface, and conductive strip plated on all edges. Our HPL all-steel anti-static floor pedestal is equipped with a high-quality steel plate-pressed bracket, height-adjustable threaded rod, and stringer made of square tubes. We keep excellent quality, thoughtful after-sales service, and competitive prices to ensure our customers' benefit!
Type : | FS662- 1500 |
Finished Floor Height : | 100- 1000mm |
Panel Size : | 600*600* 33mm、610*610mm(24"*24") |

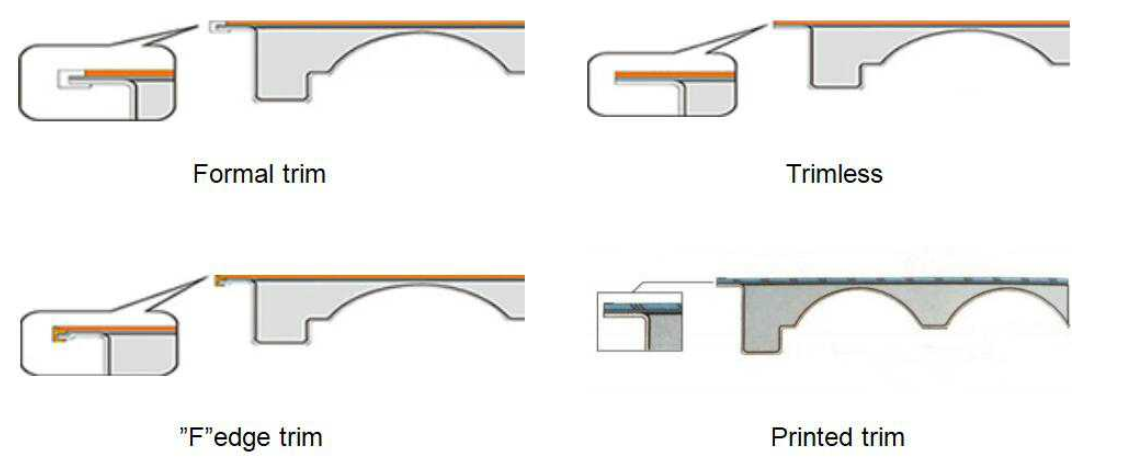

Edge trim type : | ormal trim、Trimless、 ”F”edge trim、Printed trim |
Finish Covering : | 1.0-2.0mm Anti-static Laminate HPL、 2.0-3.0mm PVC、10m Cermic、Marble、Granite、Nature Wood and etc.m |
|Installation : | With Stringer System |
Data center, computer room, control room, laboratory, post telegraph, power control center, workshop and places where require anti-static environment or have many wires.
● Excellent anti-static performance
● Flame retardant, anti-skid, anti-rust, anti-soil
● Mighty glue, strong wear-ability, non-bubble
● Class A flame spread and smoke development rating
● 24" / 610mm size panels are available
It is equipped with supports on four comers, of which height can be adjusted.
Type | Size | Concertrated Load Defleation≤2.5mm | Uniform Load | Ultimate Load | System Resistance | ||
mm | LBS | KN | KG | KN/m2 | KN | Ω | |
FS662 | 600*600 (610*610 is optional) | 662 | 2.95 | 300 | 12.50 | 8.85 | 1.0x106-1.0x109 |
FS800 | 800 | 3.56 | 363 | 16.10 | 10.68 | ||
FS1000 | 1000 | 4.45 | 454 | 23.00 | 13.35 | ||
FS1250 | 1250 | 5.56 | 567 | 33.00 | 16.68 | ||
FS1500 | 1500 | 6.67 | 680 | 34.50 | 20.02 | ||
FS2000 | 2000 | 8.90 | 906 | 46.00 | 26.70 | ||
