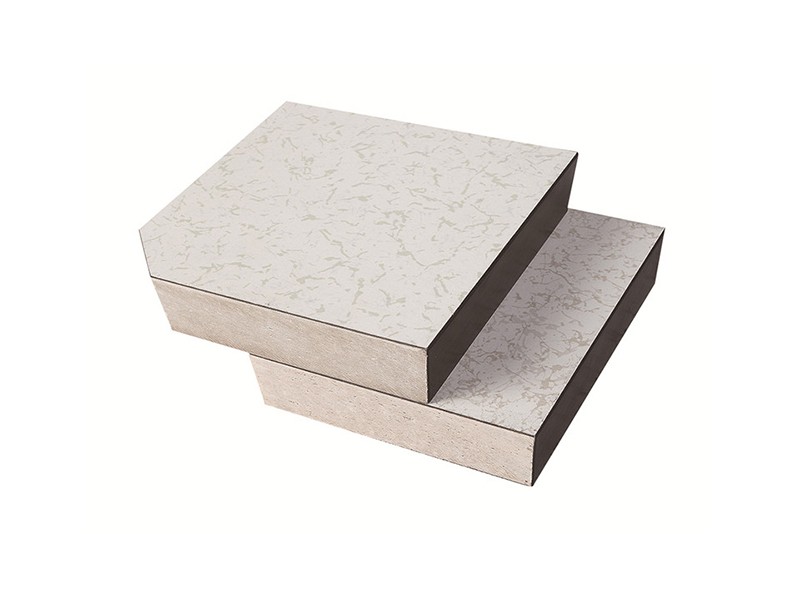

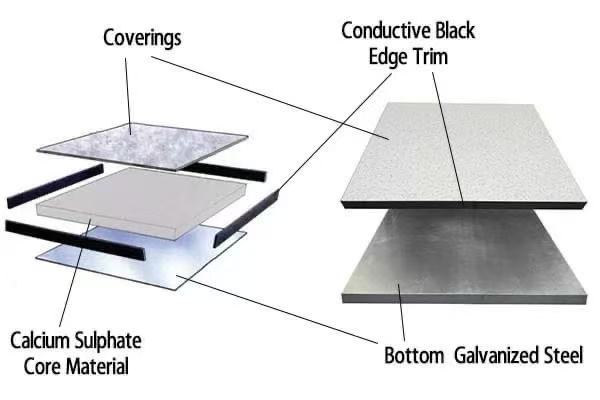

Calcium Sulphate Raised Floor is based on a high-density calcium panel, finished with HPL/PVC/Ceramic and other covering, galvanized steel sheet or aluminum foil to bottom, the four edges are wrapped with conductive PVC trims.
● Superior Fire Safety & Eco-Friendly: The calcium sulphate core is inherently non-combustible (meeting Class A fire resistance standards) and is manufactured from recycled materials. It is fully recyclable, contributing to your project's sustainability goals.
● Reliable Anti-Static Performance: Ideal for sensitive environments, the system provides controlled static dissipation (e.g., 1.0 × 10⁶ – 1.0 × 10⁹ Ω), protecting your critical electronic components.
● Unmatched Design Flexibility: Choose from a vast selection of factory-applied finishes, including anti-static HPL, conductive vinyl, rubber, or bare finishes ready for custom coverings.

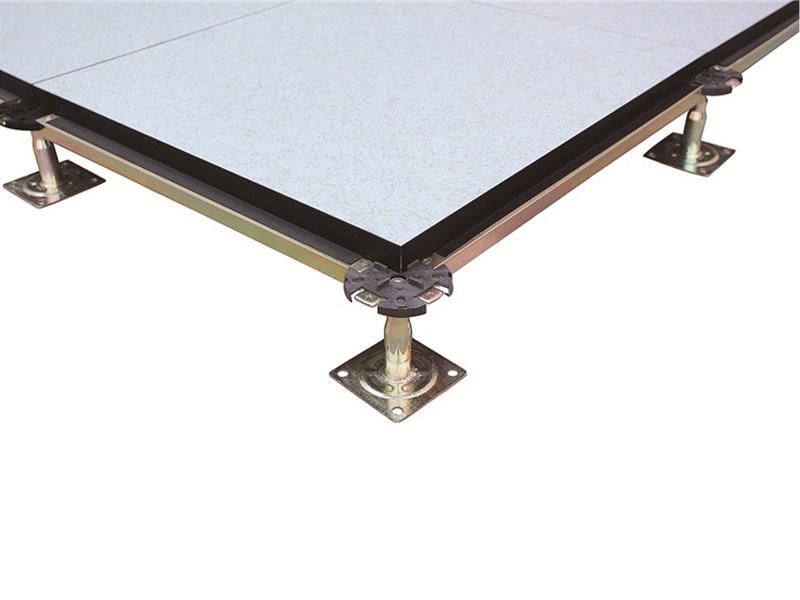

● Fully Customizable Substructure: Our adjustable pedestal system can be customized to any required height, creating the ideal underfloor plenum for cabling and airflow management.
●Modular & Flexible Design: Standard 600×600mm allow flexible layout and quick installation. Thickness can be made from 30mm to 40mm to meet different load requirements.
Calcium Sulphate Raised Floor Panels Application
Calcium Sulphate Raised Floor Panels is widely used in:

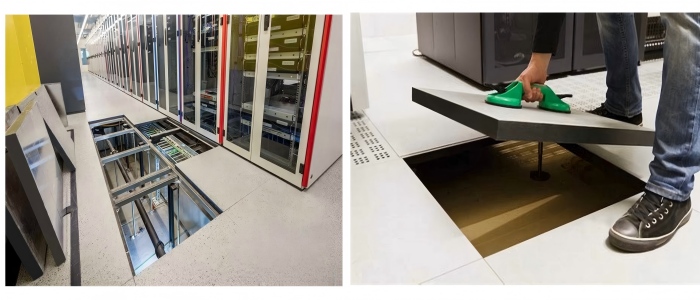

• Data Centers (Server rooms, Cloud computing centers, IDC rooms)
We are committed to providing customers with reliable products, competitive prices and professional services to create long-term win-win cooperation.
FAQ
Q1: What is the main difference between Calcium Sulphate Raised Floor Panels and Steel-Cement (OA) floors?
A1: Calcium Sulphate panels have a much higher density, resulting in a superior, "concrete slab" feel underfoot and better acoustic insulation (less noise). They are also inherently Class A fire-resistant and considered a more environmentally friendly "green" product.
Q2: How thick are these panels?
A2: The panel core thickness typically ranges from 30mm to 40mm, depending on the specific load rating model (e.g., FS800 vs. FS1500). This high-density thickness is key to its exceptional strength.
Q3: Can I get any finish on this panel?
A3: Yes. We offer a wide variety of factory-applied finishes, including the most popular anti-static High-Pressure Laminates (HPL) and conductive vinyl. We also provide bare panels if you wish to apply your own finish like carpet tiles on-site.

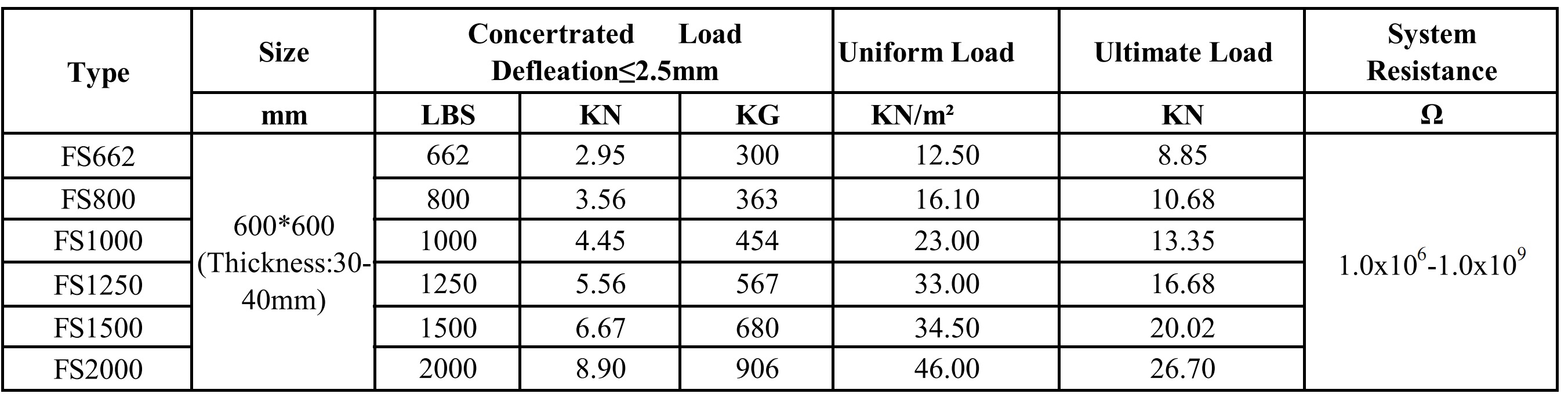

Q4: Is this floor suitable for heavy equipment in a data center?
A4: Absolutely. The FS800-1500 series is specifically engineered for high load environments. It excels at handling both static loads (heavy server racks) and dynamic/rolling loads (equipment carts).
