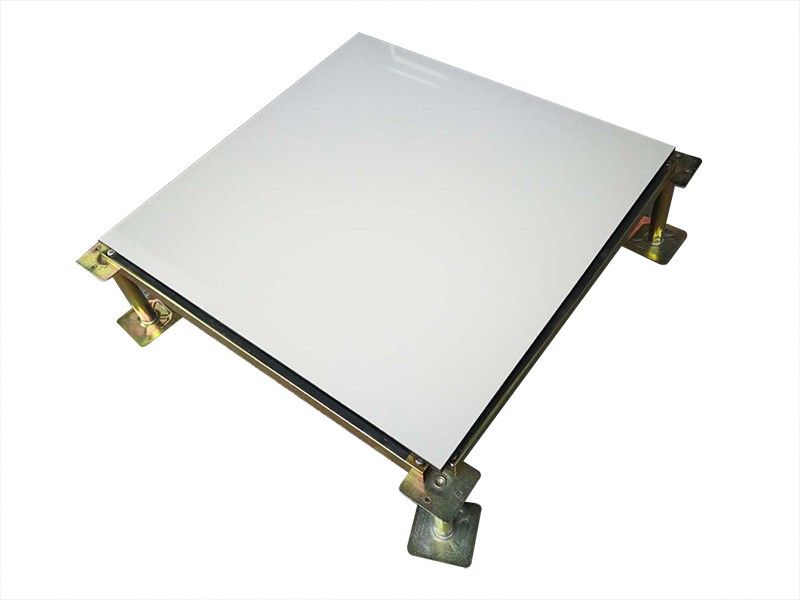

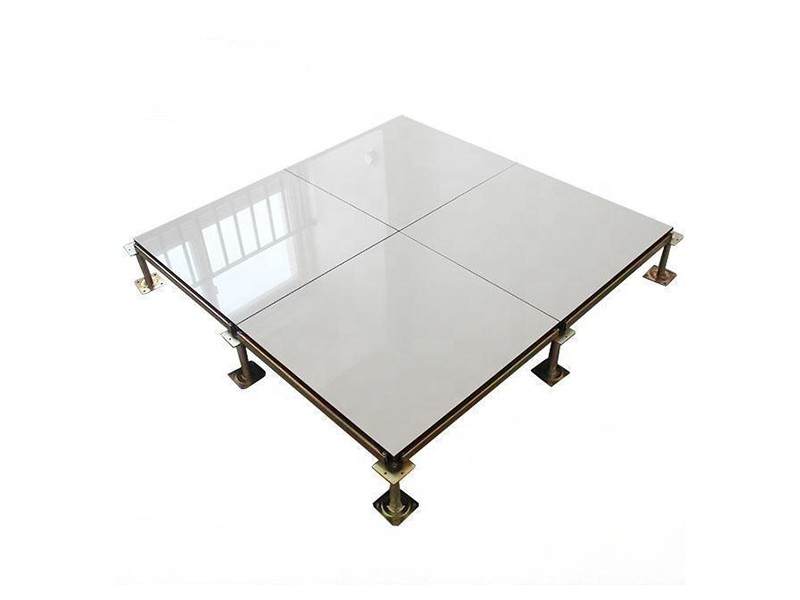

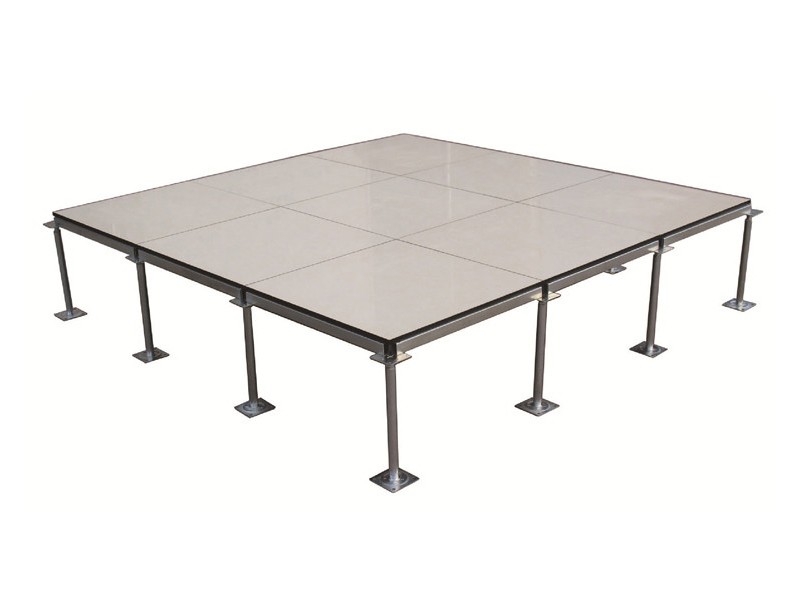

Ceramic Access Floor is made of anti-static ceramic and steel as the main body, which is stretched forming,spot-welded, coated with epoxy powder after phosphating, infill with foamed cement, with corner lock. The bottom of all-steel anti-static floor with Porcelain surface made of ST14 stretching board, the surface is made of SPCC rigid steel plate, after stretching, spot welding to form an all-steel shell structure.
Why choose between high-end design and operational function? ZILI's Ceramic Raised Access Floor system delivers both. We integrate the timeless beauty and superior durability of a ceramic tile finish with the robust, functional core of an all-steel, cement-filled raised floor.
This system is the ultimate solution for spaces that demand both a sophisticated, beautiful appearance and the highest standards of anti-static protection, fire safety, and cable management.
Type : | FS662- 1500 |
Finished Floor Height : | 70-2000mm |
Panel Size : | 600* 600mm、800* 800mm and special size |
Ceramic Thickness : | 10/ 12mm |
Ceramic Type : | Normal ceramic and Anti- static ceramic |
Our Ceramic Anti-Static Access Floor System is widely used in program-controlled computer rooms, control rooms, laboratories, electric classrooms, microelectronics production and installation workshops and areas with high cable management and anti-static requirement, can also be used for intelligent office buildings, banks, post and telecommunication offices, power dispatching rooms and other places.
● High-End Data Center Lobbies
● Modern Control Rooms & Command Centers
● Exhibition Halls & Showrooms
● Premium Open-Plan Offices
● Broadcasting Studios
● Reception Areas
● Unmatched Aesthetic Versatility: Elevate your interior design. We offer dozens of ceramic tile colors and patterns to choose from, including modern grey palettes, clean whites and light tones, and warm yellow hues. Create a truly beautiful, high-end atmosphere without compromise.
● Superior Durability & Easy Maintenance: The ceramic surface is not just for looks. It is incredibly robust, offering exceptional resistance to scratches, heavy traffic, stains, and wear. It is also exceptionally easy to clean and maintain, ensuring a pristine look for years.
● Reliable Anti-Static Protection: Engineered for sensitive technical environments, the entire system provides stable and reliable static dissipation, with a system resistance of 1.0 Megaohm to 1.0 Gigaohm (1.0 × 10⁶ – 1.0 × 10⁹ Ω). This protects your critical electronic equipment from harmful ESD damage.
● Robust Structural Support & Load Capacity: Beneath the elegant finish lies a heavy-duty, all-steel, cement-filled core. This foundation provides outstanding load-bearing capacity, a solid underfoot feel, and the strength to support heavy equipment and high foot traffic.
● Certified Class A Fire Resistance: Safety is non-negotiable. The non-combustible steel and cement core, combined with the ceramic top, achieves a full Class A fire resistance rating, providing maximum protection for your facility and personnel.
Type | Size | Concertrated Load Defleation≤2.5mm | Uniform Load | Ultimate Load | System Resistance | ||
mm | LBS | KN | KG | KN/m2 | KN | Ω | |
FS662 | 600*600 | 662 | 2.95 | 300 | 12.50 | 8.85 | 1.0 × 10⁶ – 1.0 × 10⁹ |
FS800 | 800 | 3.56 | 363 | 16.10 | 10.68 | ||
FS1000 | 1000 | 4.45 | 454 | 23.00 | 13.35 | ||
FS1250 | 1250 | 5.56 | 567 | 33.00 | 16.68 | ||
FS1500 | 1500 | 6.67 | 680 | 34.50 | 20.02 | ||
FS2000 | 2000 | 8.90 | 906 | 46.00 | 26.70 | ||
You no longer have to settle for purely functional flooring. With ZILI, you get a cost-effective, beautiful, and technically superior solution. Contact our design specialists today to explore our extensive ceramic color catalog and get a competitive quote for your project.
Q1: How is the ceramic tile attached to the raised floor panel?
A1: The ceramic tile is permanently bonded to the all-steel, cement-filled core panel under high pressure at the factory. This creates a single, incredibly strong, and integrated panel, ensuring long-term durability and preventing delamination.
Q2: Is the ceramic surface itself anti-static?
A2: Yes. The ceramic tiles used in our system are specifically treated or manufactured with anti-static properties. They work with the conductive adhesives and core to ensure the entire system performs within the specified static-dissipative range (1.0 × 10⁶ – 1.0 × 10⁹ Ω).
Q3: Can I get a custom color that is not in your catalog?
A3: We offer a very wide selection of dozens of popular and modern colors. Please contact us with your specific design requirements. While custom-matched colors may be possible depending on the project size, we find that most clients find their perfect match within our extensive catalog.
Q4: How does the price of a ceramic raised floor compare to HPL or vinyl?
A4: A ceramic raised floor is a premium finish. It is generally more of an investment than standard HPL or vinyl finishes due to the material cost and manufacturing process. However, it provides significantly greater durability, a more high-end aesthetic, and a longer lifespan, offering excellent long-term value.
Q5: How do I clean and maintain the ceramic floor?
A5: Maintenance is one of its best features. The ceramic surface is non-porous and highly resistant to staining. Regular maintenance involves simple sweeping or vacuuming and damp mopping with a neutral pH-balanced cleaner.
As a professional manufacture of Access raised flooring,we have 28 years experience in this field and also have a good reputation.
