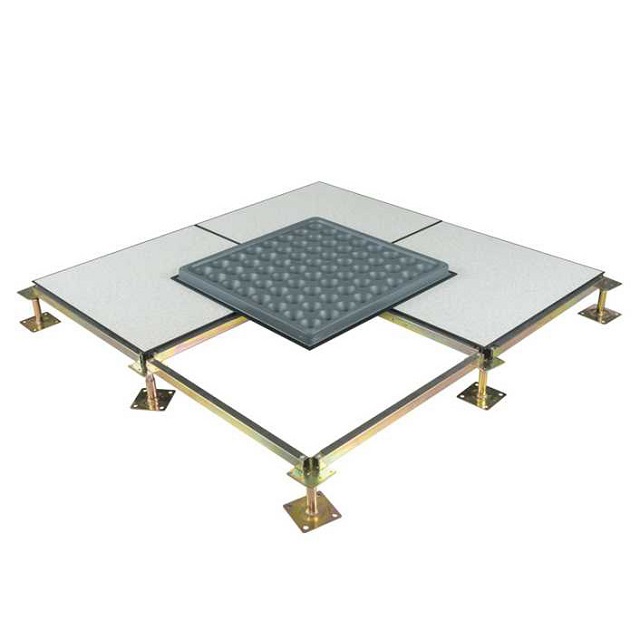

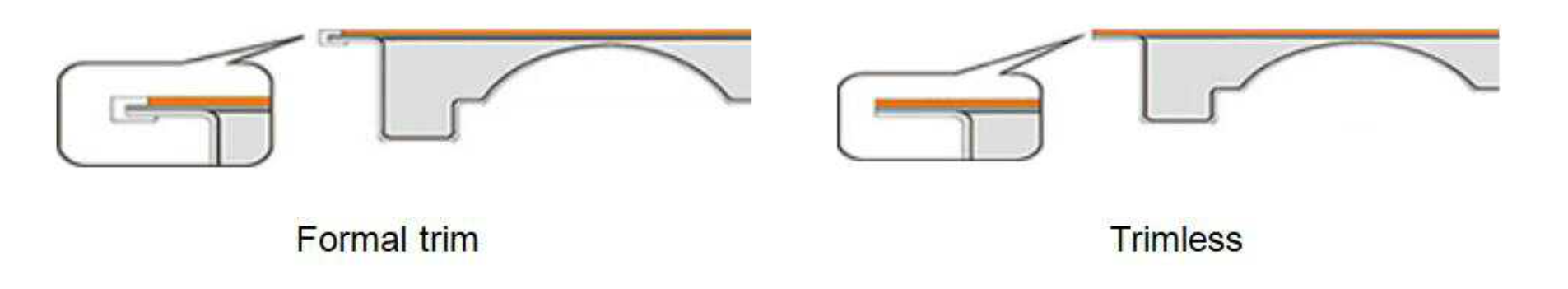

Anti-static raised flooring features steel cementitious panels with anti-static finishes like HPL, conductive PVC or ceramic tile. Edge trims protect panels. And trimless panel is also available. Whole system includes pedestals, stringers and other accessories.

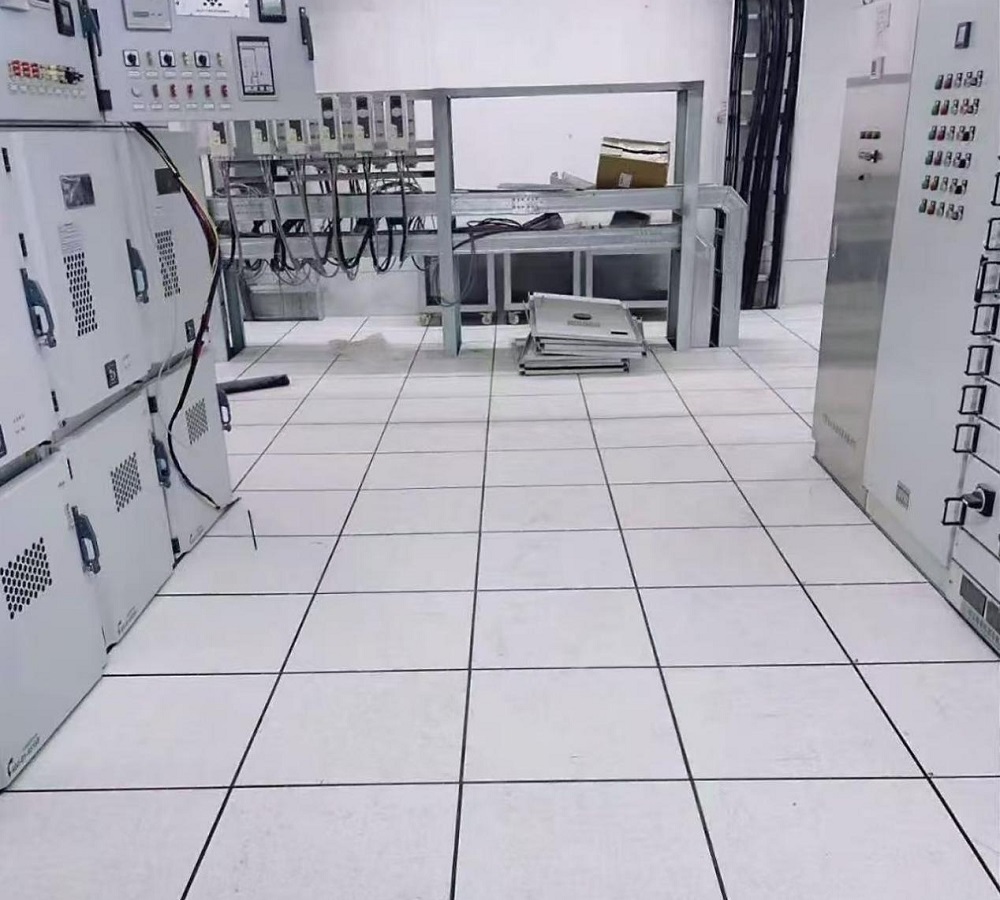

ZILI’s heavy duty raised floor systems are engineered to provide maximum structural stability for mission-critical facilities. Built with a reinforced steel shell and a solid cementitious core, these heavy duty raised floor systems support extreme static and dynamic loads, making them the standard choice for hyperscale data centers, electrical substations, and industrial manufacturing plants worldwide.
Heavy Duty Raised Floor Systems Key Features & Benefits
Extra-High Load-Bearing Capacity
Adopts heavy-duty all-steel structure with high-strength cement infill, featuring outstanding load performance to stably support heavy equipment without deformation or damage.
Permanent & Stable Anti-Static Performance
Equipped with professional anti-static surface (conductive PVC/vinyl, anti-static HPL) and conductive edge trims, realizing consistent static dissipation to protect precision electronic equipment safely.
Excellent Structural Stability & Rigidity
Integrated all-steel cement-filled design enhances overall structural rigidity, effectively preventing panel warping, shaking and deflection, ensuring long-term flatness of the floor.
Superb Wear & Impact Resistance
High-quality anti-static covering and solid steel base deliver strong wear resistance, scratch resistance and impact resistance, maintaining intact appearance and performance even in long-term heavy-use scenarios.
Outstanding Fireproof Performance
Made of non-combustible steel and cement materials, reaching high fireproof grade; the closed cement infill structure also effectively blocks moisture, suitable for various harsh working environments.
Strong Durability & Long Service Life
Premium raw materials and sturdy manufacturing process make the floor resistant to aging, corrosion and wear, greatly extending the service life and reducing the frequency of replacement and repair.

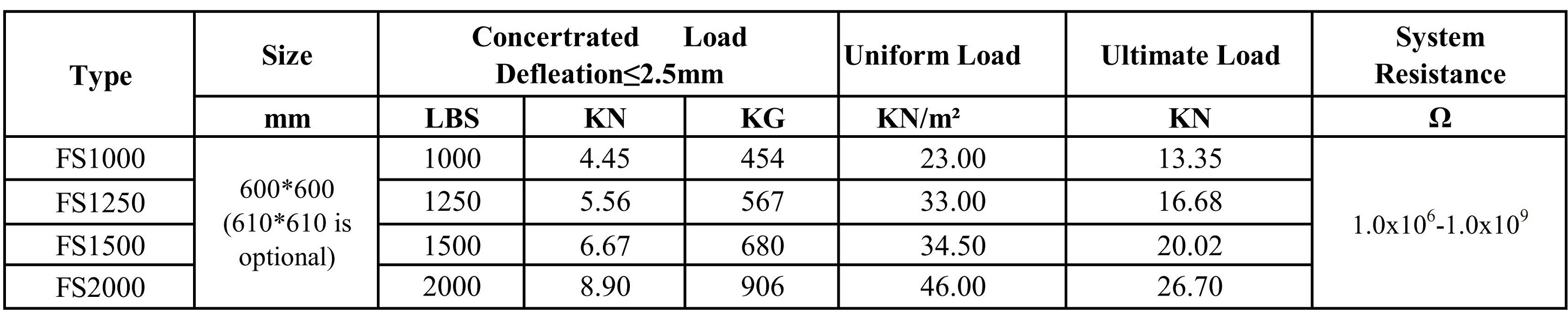

Heavy Duty Raised Floor Systems Technical Specifications
We provide tailored, practical flooring solutions from design and product selection to installation support.
4. Strong Quality & Professional Service
We focus on stable performance, long service life, and full-service support for long-term win-win cooperation.
FAQ
Q1: What does the "static-dissipative" range (1.0 × 10⁶ – 1.0 × 10⁹ Ω) actually mean?
A1: This specific electrical resistance range is the industry standard for safety and performance. It is low enough to slowly and safely "dissipate" (or drain) static electricity from personnel and equipment, preventing a harmful ESD spark. At the same time, it is high enough to not be "conductive," which protects personnel from the risk of serious electrical shock.
A2: We offer a wide variety of factory-applied finishes to meet your needs. The most popular choices for anti-static environments are High-Pressure Laminate (HPL) and Conductive Vinyl (PVC). We can also provide other finishes, such as rubber, or bare-finish panels if you wish to apply your own carpet tiles.

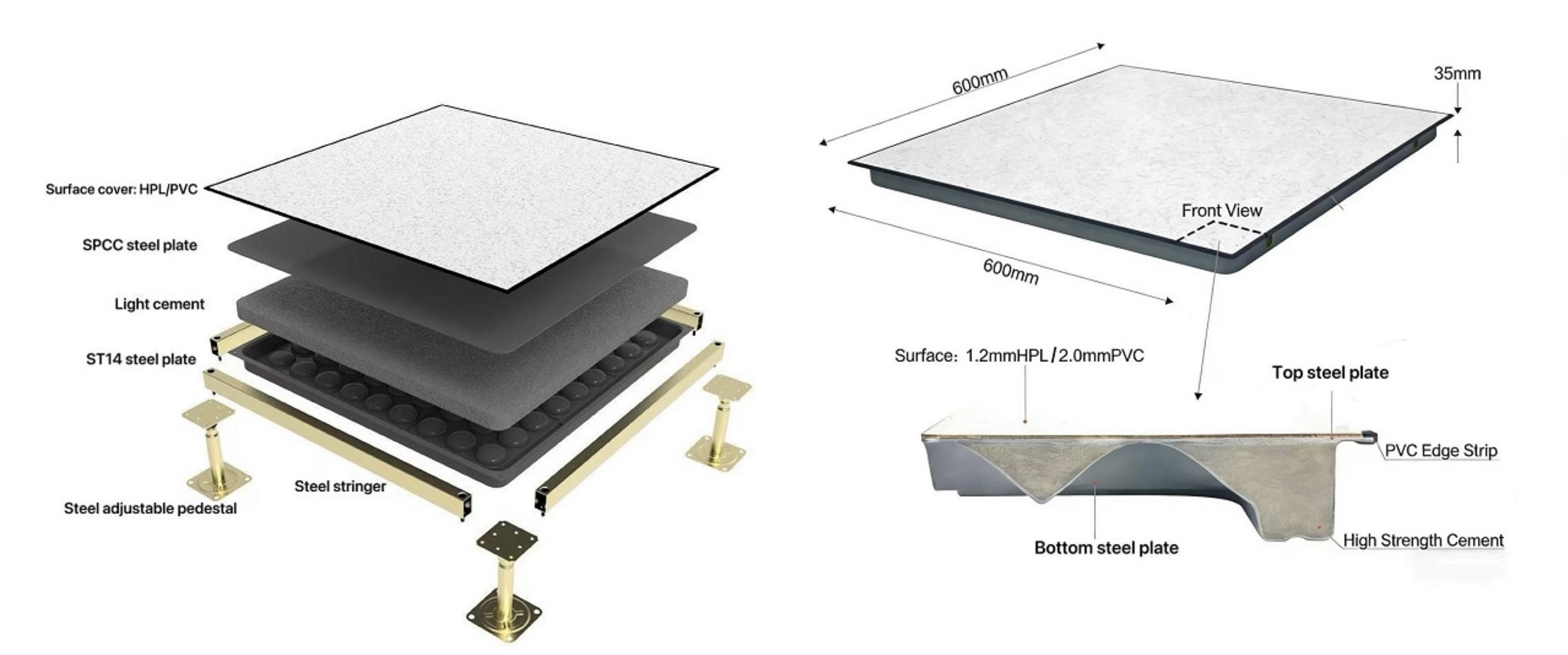

Q3: What is the core material of these panels?
A3: The core is made of a high-density, cement-like slurry (cementitious fill) that is completely encased in a steel shell. This "steel cementitious" construction is what gives the panel its exceptional load capacity, solid feel underfoot, and Class A fire rating.
Q4: Can this floor (FS1000-FS2000) support heavy server racks?
A4: Absolutely. The FS1000-FS2000 model range is specifically engineered for high-load environments like data centers. These panels are designed to handle significant static loads (like heavy racks) and rolling loads (like equipment carts). We can provide detailed technical data sheets for each model's specific load ratings.
Q5: Can I customize the height of the underfloor space?
A5: Yes. The finished floor height is determined by our adjustable pedestal system. We can provide pedestals to create almost any height you require, from just a few inches for cable management to several feet for underfloor air distribution. Heavy-duty flooring is equipped with heavy-duty pedestals.
Q6: What is your production and delivery time?
A6: With our own factory, we guarantee fast production and on-time delivery.
Q7: Are your products certified?
A7: Yes, our products comply with international standards for quality and safety.
