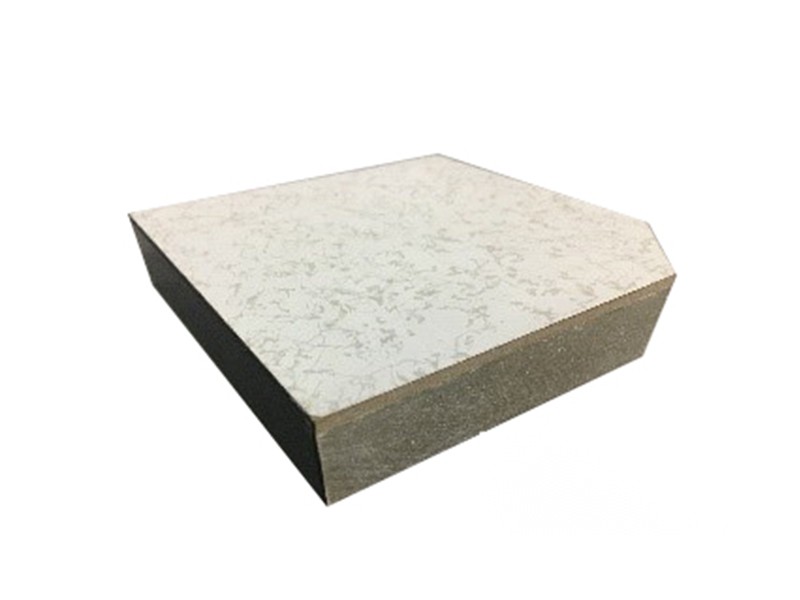

Anti-static calcium sulphate raised access floor consists of high-strength calcium sulphate core. steel sheet is bonded to the bottom of core.HPL，PVC or anti-static ceramic tiles is bonded to the top of core.PVC edging strip is glued to each edge of the panel,avoiding common occurrences of floor bubbling,and unglued phenomena and etc.

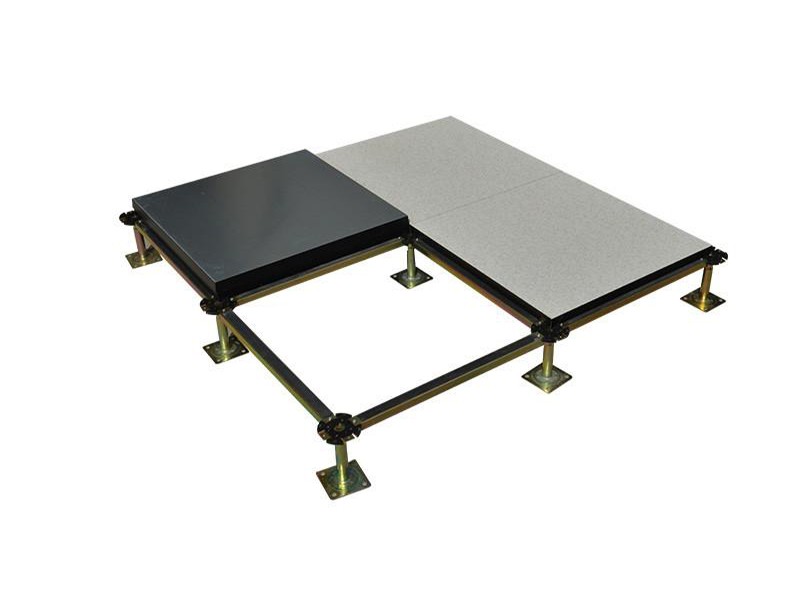

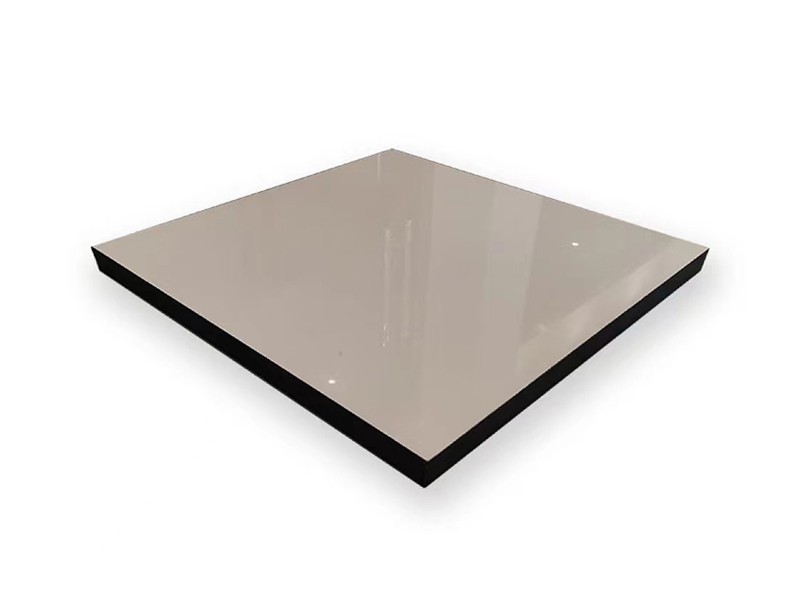

Anti-static Calcium Sulphate Raised Floor
Engineered with a high-density, fiber-reinforced calcium sulphate core, this system provides a rock-solid, concrete-slab-like underfoot feel. It combines exceptional load-bearing capacity and superior acoustics with inherent Class A fire resistance and eco-friendly materials, setting the new standard for high-performance raised access flooring.
Anti-static calcium sulphate raised access floor consists of high-strength calcium sulphate core. steel sheet is bonded to the bottom of core.HPL，PVC or anti-static ceramic tiles is bonded to the top of core.PVC edging strip is glued to each edge of the panel,avoiding common occurrences of floor bubbling,and unglued phenomena and etc.
Finished Floor Height : | 100- 2000mm |
Density : | 1500-1700 kg/m3 |
Panel Size : | 500* 500mm、600* 600mm and special size |
Core Panel Thickness : | 22 -38mm |
Upper Covering : | Bare、1.0-2.0mm Anti-static Laminate HPL、2.0-3.0mm PVC、10mm Cermic、Marble、 Granite、 Nature Wood、and etc. |
Under Covering : | Bare、 0.3-2.0mm Galvanized steel、 0.1-2.0mm Aluminum Foil |

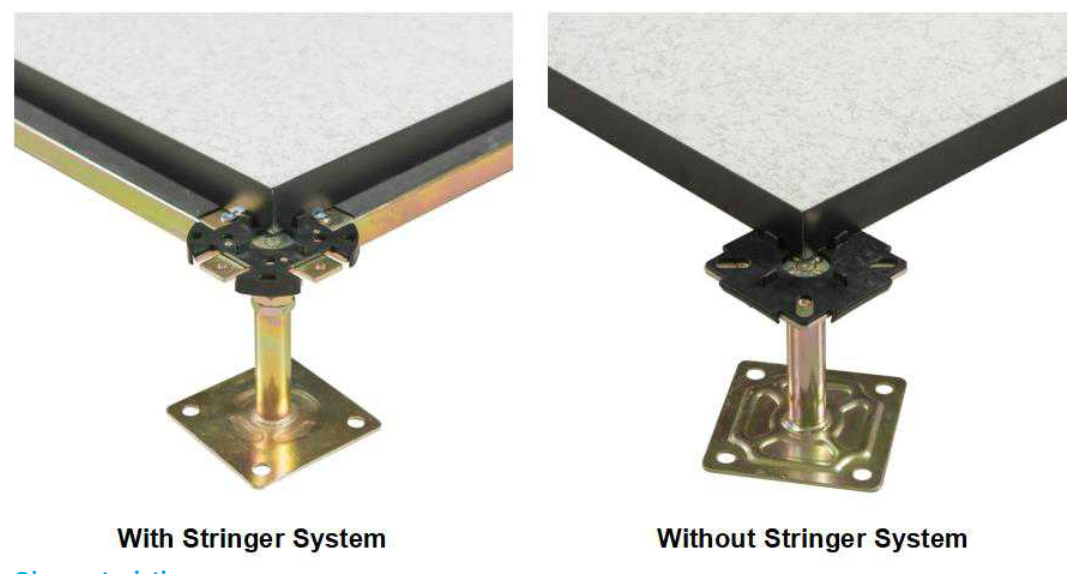

Installation : | Without or With Stringer System |
Anti Static Calcium Sulphate Floor Characteristics
● Exceptional High-Load Capacity: Built to handle the demands of heavy equipment and high traffic, our high-density core (Models FS800-1500) offers superior static, dynamic, and rolling load performance.
● Superior Fire Safety & Eco-Friendly: The calcium sulphate core is inherently non-combustible (meeting Class A fire resistance standards) and is manufactured from recycled materials. It is fully recyclable, contributing to your project's sustainability goals.
● Reliable Anti-Static Performance: Ideal for sensitive environments, the system provides controlled static dissipation (e.g., 1.0 × 10⁶ – 1.0 × 10⁹ Ω), protecting your critical electronic components.
● Unmatched Design Flexibility: Choose from a vast selection of factory-applied finishes, including anti-static HPL, conductive vinyl, rubber, or bare finishes ready for custom coverings.
● Fully Customizable Substructure: Our adjustable pedestal system can be customized to any required height, creating the ideal underfloor plenum for cabling and airflow management.
Anti Static Calcium Sulphate Floor Application
Anti Static Calcium Sulphate Floor is widely used in telecommunication room. Power station, computer room, factory clean room and other anti-static requiring places.

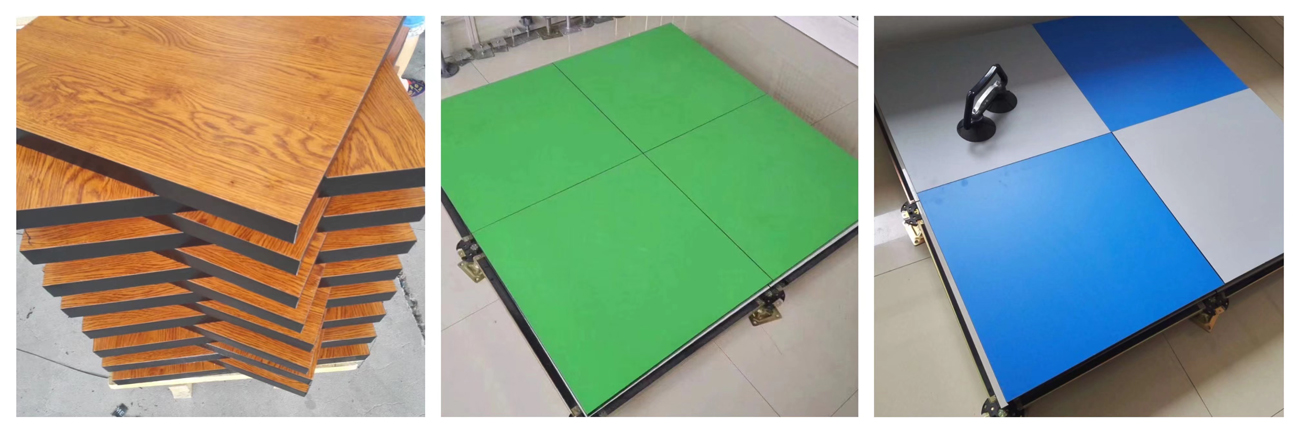

Customized Covering
Technical Parameters
Type | Size | Rolling load | Uniform load | Ultimate load | Concentrated load | ||||||
10PASS | 10KPAAASS | 2.5mm deflection | 2.0mm deflection | ||||||||
FS1000 | 600*600mm 30-40mm thick | 3.56KN | 2.67KN | 5000LB/m2 | 22.22KNm2 | 3260LB | 14.50KN | 1000LB | 4.45KN | 800LB | 3.56KN |
FS1250 | 4.45KN | 3.56KN | 6250LB/m2 | 27.78KNm2 | 4130LB | 18.36KN | 1250LB | 5.56KN | 1000LB | 4.45KN | |
FS1500 | 5.56KN | 4.45KN | 7500LB/m2 | 33.34KNm2 | 5000LB | 22.17KN | 1500LB | 6.68KN | 1250LB | 5.56KN | |
FS2000 | 6.68KN | 5.56KN | 10000LB/m2 | 44.45KNm2 | 6620LB | 29.42KN | 2000LB | 8.89KN | 1500LB | 6.68KN | |
FS2500 | 8.89KN | 6.68KN | 13000LB/m2 | 57.79KNm2 | 8400LB | 37.34KN | 2500LB | 11.11KN | 2000LB | 8.89KN | |
At ZILI, we understand that your facility's foundation is critical. We combine high-quality materials, precision manufacturing, and a customer-centric approach to deliver flooring solutions that perform. Our commitment to cost-effectiveness, diverse finish options, fast delivery, and dedicated after-sales support makes us the ideal choice for your next project.
Q1: What is the main difference between Calcium Sulphate and Steel-Cement (OA) floors?
A1: Calcium Sulphate panels have a much higher density, resulting in a superior, "concrete slab" feel underfoot and better acoustic insulation (less noise). They are also inherently Class A fire-resistant and considered a more environmentally friendly "green" product.
Q2: How thick are these panels?
A2: The panel core thickness typically ranges from 30mm to 40mm, depending on the specific load rating model (e.g., FS800 vs. FS1500). This high-density thickness is key to its exceptional strength.
Q3: Can I get any finish on this panel?
A3: Yes. We offer a wide variety of factory-applied finishes, including the most popular anti-static High-Pressure Laminates (HPL) and conductive vinyl. We also provide bare panels if you wish to apply your own finish like carpet tiles on-site.
Q4: Is this floor suitable for heavy equipment in a data center?
A4: Absolutely. The FS800-1500 series is specifically engineered for high load environments. It excels at handling both static loads (heavy server racks) and dynamic/rolling loads (equipment carts).
As a professional manufacture of Access raised flooring,we have 28 years experience in this field and also have a good reputation.
