Aluminum Perforated Panel

As a leading aluminum perforated panel for TFT/LCD manufacturer, ZIli offers panels that excel in design and functionality. Our aluminum perforated panel for TFT/LCD ensures efficient performance in display setups, while the aluminum perforated panel for semiconductor industry meets precise sector demands. Additionally, our aluminum perforated panel for clean room adheres to strict cleanliness standards.


WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
//www.ninyam.com/uploadfiles/128.1.164.122/webid2141/source/202301/167351075544.jpg
aluminum perforated panel
ventilated floor is that it is ventilated from the lower space of the floor; different local climatic environments can be formed
ventilated floor is that it is ventilated from the lower space of the floor; different local climatic environments can be formed
Product Detail

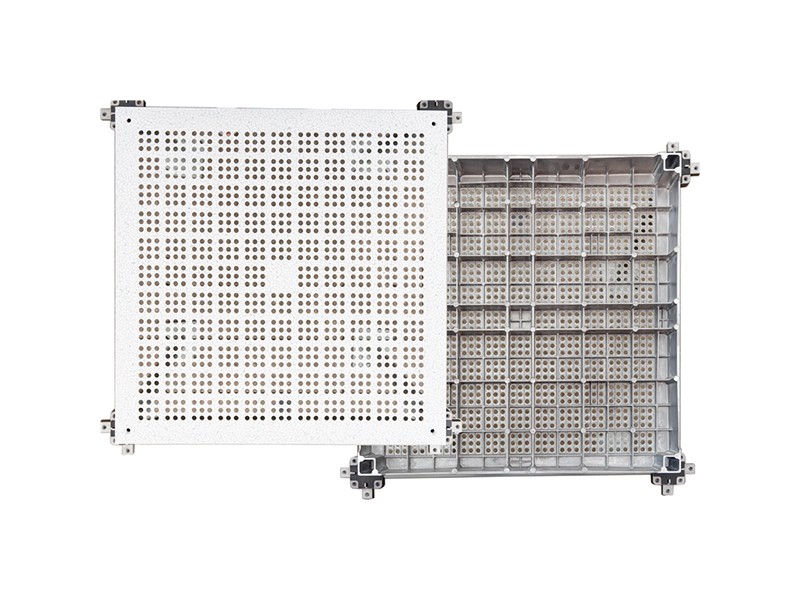

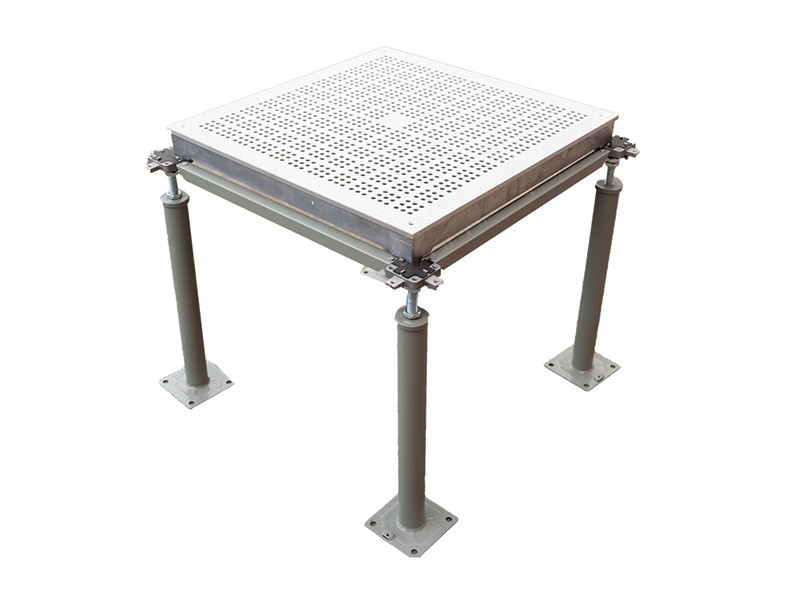

Aluminum Perforated Access Floor


The ventilated floor is similar to the traditional upholstered air conditioning system. The main difference of the ventilated floor is that it is ventilated from the lower space of the floor; different local climatic environments can be formed in the same large space; the indoor airflow is distributed from the floor to the ceiling. Aluminum raised flooring is completely made of aluminum alloy under a negative pressure, which combines the corrosion resistance and high strength of the aluminum alloy. It has the characteristics of high dimensional accuracy, good electrical conductivity, good fire resistance, anti-magnetic, and non-deformation. The performance is extremely stable, but the maintenance cost is large, and the labor intensity during maintenance is large, which is easy to damage the stability of the bottom support system of the floor, and requires professional personnel to operate.

In the meticulously controlled environments of cleanrooms, where even the slightest impurity can have disastrous consequences, the choice of building materials plays a pivotal role in ensuring the integrity and performance of the space. Among the standout solutions that have proven their worth in this demanding context are aluminum perforated panels, which have become the epitome of aluminum perforated panel for clean room efficiency and functionality.


Ventilation Rate :

15%-65%

Materials :

Steel、Aluminum

Panel Size :

600* 600mm and other special size

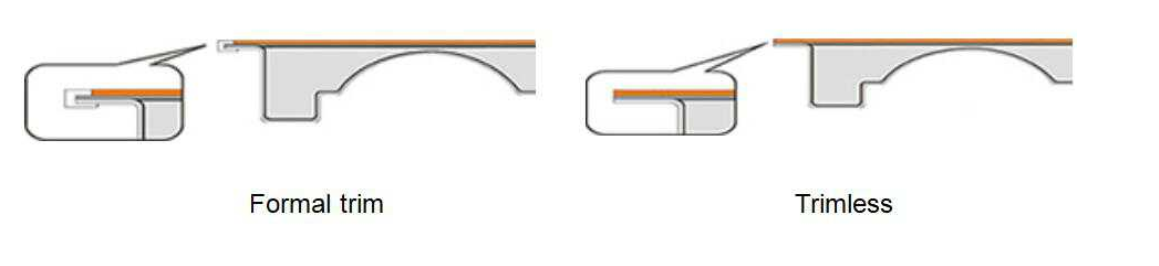

Edge Trim Type :

Formal trim、Trimless

Finish Covering :

Bare with powder coated、1.0-2.0mm Anti- static Laminate HPL、2.0-3.0mm PVC、10mm Cermic and etc.

Damper :

Available

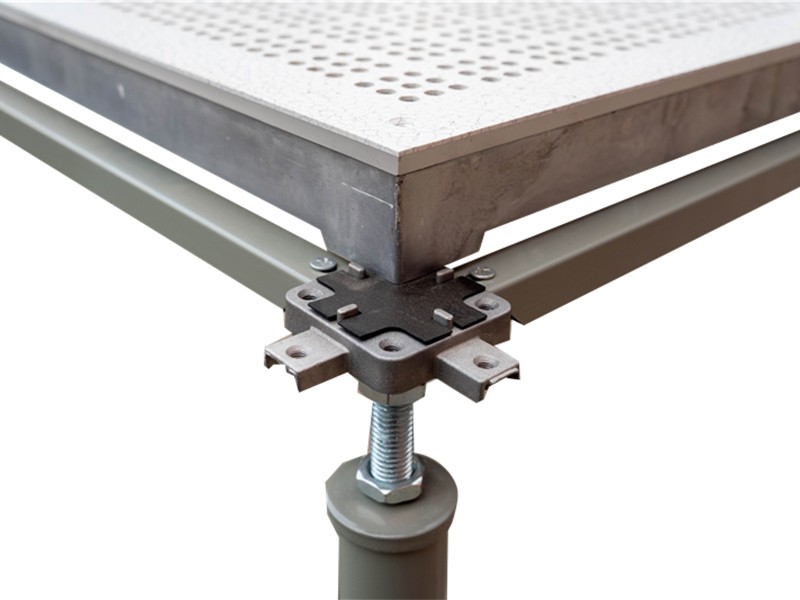

Installation :

With Stringer System


Aluminium cladding perforated panel formal trim


Aluminium cladding perforated panel Application


Aluminium cladding perforated panels can be used in the following fields: microelectronics industry (wafer plant, TFT/LCD, packaging and testing, printed circuit boards), semiconductor industry, flat panel display industry, life science industry, precision engineering and ultra-clean environmental electronics industry.


Aluminium cladding perforated panel Characteristics


● 15%-65% ventilation rate

● Patent design with high dimensional accuracy

● Light weight and excellent loading capacity

● Conductive and static dissipative coverings and coatings

● Contains no ferrous materials to disrupt magnetic fields

● Excellent rolling load performance

● Die cast aluminum panels meet call A1 fire rating

● Good performance of waterproof

● Pollution and radiation free

● Recyclable and economic system

● Various pedestals and structure system
